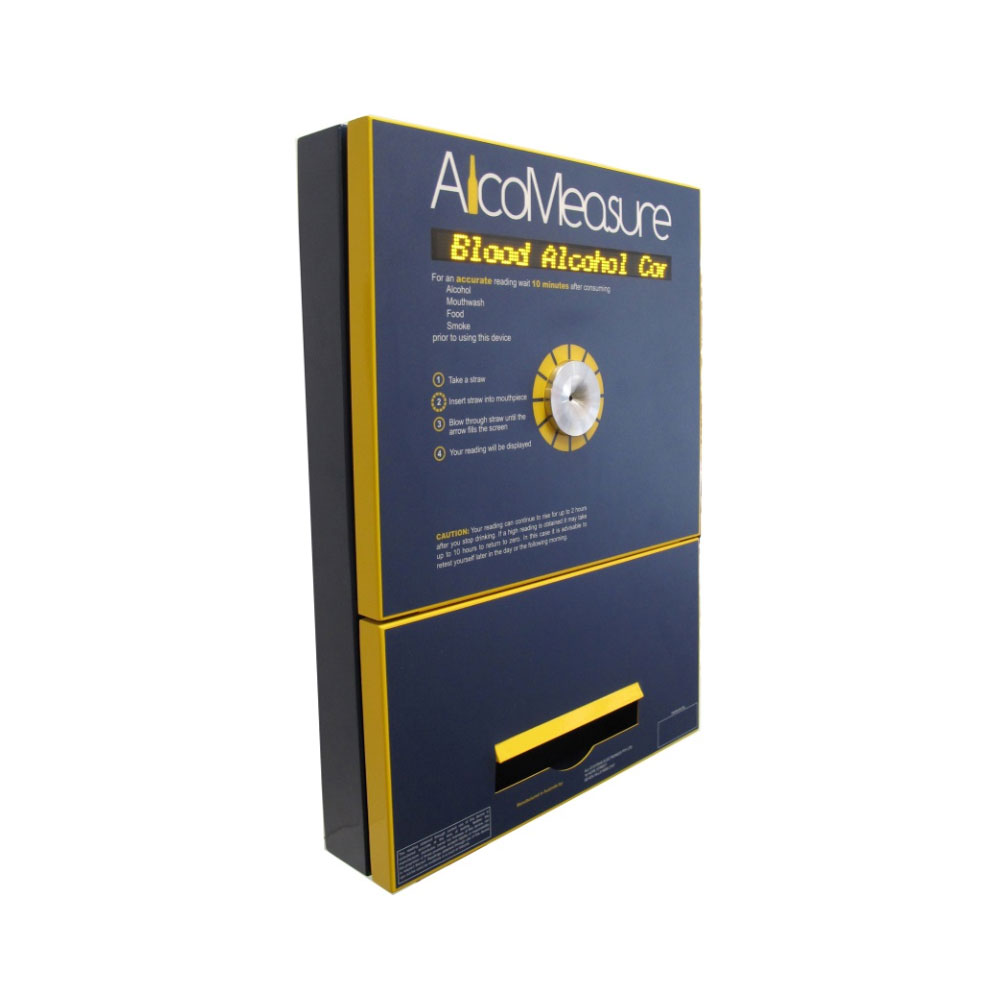

AlcoMeasure Wall Mount Breahalyser

About the AlcoMeasure Wall Mount Breahalyser

This new, technologically advanced, wall-mounted breathalyser is perfect for employee self testing or for interfacing with access control/employee/visitor management systems.

Contact us for pricing and information about the optional extras.
  • AS3547 Certified
  • 100% Australian designed and manufactured
  • automatic calibration using internal certified gas reference
  • Calibration gas pipework minimised for endurance
  • Programmable information and advisory messages
  • Multiple interface options
  • Removable SD Card containing data log
  • Separate access to straw dispenser
  • PC utility program for configuration, diagnostics
  • Uses standard drinking straws (cocktail size 135mm)
  • A perfect workplace breathalyser


  • Steel case with separate mounting bracket
  • Net weight 13.5Kg
  • 380w x 530h x 130d (mm)
  • Universal power supply 100-240V AC, 20W max power consumption
  • Bright LED Moving Message Display 280mm x 18mm
  • Mini-B USB port for PC Connectivity
  • Type-A USB port for USB memory stick
  • High quality fuel cell sensor
  • 3 x RS232 serial ports


  • Internal Printer
  • "Evidential Style" test mode of operation
  • Keypad (for user ID input


Due to the auto-calibration feature, and the highly technical nature of this device, on-going servicing of this product is required to maintain accuracy to AS3547 standards. Please speak with our staff for servicing options and prices.
